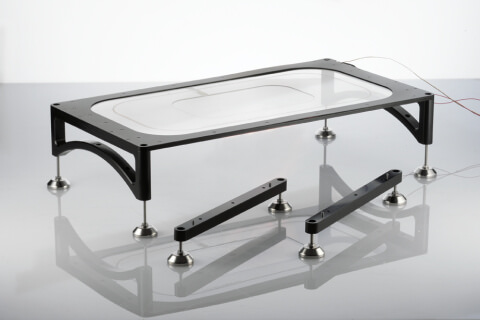

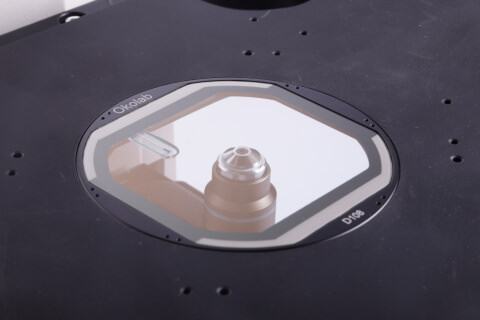

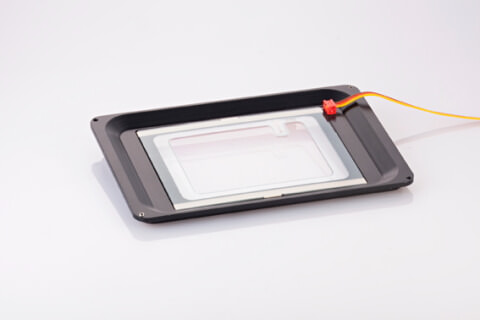

Glass T Plates…
….for Inverted/Upright/Stereo microscopes and Cabinets
The Glass T Plate creates a warm and optically transparent surface perfectly flush with the microscope stage. It employs Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass surface and a surface sensor to ensure the highest accuracy on temperature reading. The glass is chemically strengthened and protected by a rigid aluminum frame.
The Glass Plates require H401-T-CONTROLLER, which can control independently up to two devices.
Email to a friend
- Returns & Delivery
- You have 14 calendar days to return an item from the date you received it.
- Only items that have been purchased directly from Us.
- Please ensure that the item you are returning is repackaged with all elements.
Temperature range: from ambient to 60°C.
Accuracy on specimen: ±0.3°C.
Specimen temperature within ±0.3°C, if room temperature remains within ±1°C.
ITO glass coating ensures uniform glass heating.
Glass thickness: 0.5 mm (for inverted microscopes) 1 mm (for upright microscopes).
Aluminum frame improves rigidity.
Chemical glass strengthening ensures highest resistance.
Easy plate replacement, if necessary.
External T – sensor (included).
On-board Data logging and download routines to USB drive.
On-board logging of calibration and alarm events.
Alarm buzzer and External Alarm Connector.
Self calibration routines allow to improve temperature accuracy.
