Product Description
The Stage Top Chambers fits in the XY stage or Piezo insert of the microscope, connects to Okolab Temperature, Gas and Humidity Controllers and creates the proper environment for live cell imaging right on the microscope stage.
- Περιγραφή
- Returns & Delivery
- You have 14 calendar days to return an item from the date you received it.
- Only items that have been purchased directly from Us.
- Please ensure that the item you are returning is repackaged with all elements.
Περιγραφή
Specifications
Temperature Range: from 3°C above ambient to 60°C.
Temperature Accuracy: ± 0.1°C in sample feedback mode, ± 0.3°C in chamber feedback mode.
Compatible with: Bold Line T, UNO Combined and H401-T Controllers.
Chambers available for any XY stage / piezo insert.
Embedded temperature sensor in heated glass lid and in chamber body.

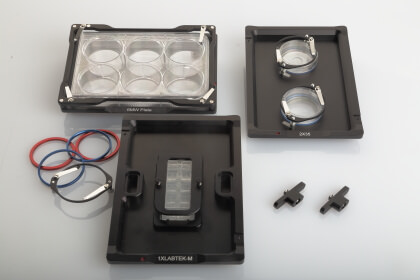

Interchangeable magnetic inserts allow to host Petri, Slides and MW Plates.
Magnetic locks hold the Petri, the Slides and the MW Plates in the correct position inside the chamber.

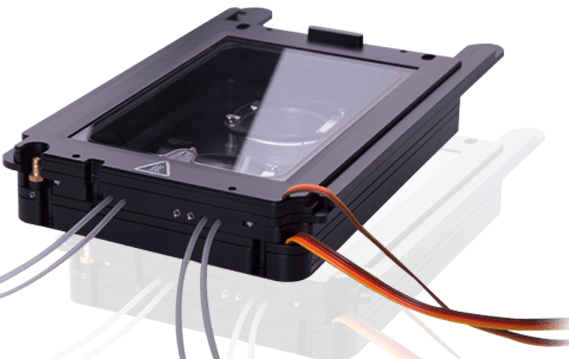

Perfusion holes available for inlet and outlet of tubes.
Sliding lid allows easy access to the sample.

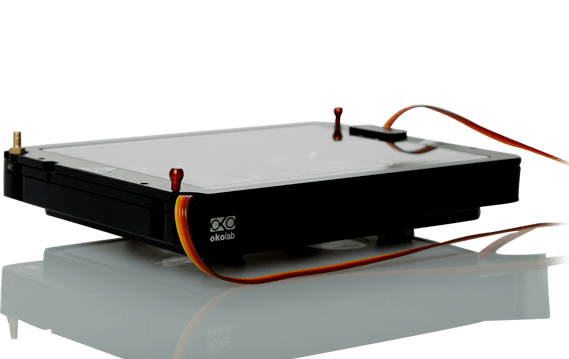

Optional lids are available for Koehler Illumination, laser safety and injection during imaging.
Returns and Exchanges
There are a few important things to keep in mind when returning a product you purchased.You can return unwanted items by post within 7 working days of receipt of your goods.
Ship your item back to Us
Firstly Print and return this Returns Form to:
30 South Park Avenue, San Francisco, CA 94108, USA
Please remember to ensure that the item you are returning is repackaged with all elements.
For more information, view our full Returns and Exchanges information.
Product brand
Related Products
Enclosure
The microscope enclosure creates a large volume around the microscope in which temperature is controlled by recirculating warm air.
It is made of polycarbonate panels and encloses microscope stage, nosepiece and objectives. It doesn't affect focus stability. All electronics including EMCCDs, spinning disk confocal etc. are left outside of the enclosure avoiding exposure to 37°C.
The enclosure closely follows the microscope profile and is supported by posts resting on the vibration isolation table.
Temperature controlled heating band
Easy installation around the objective. Fits any objective on the market. Connects to Stage Top Incubator. Single channel controller available for standalone operation.
